RB22 50MPH Water Filled Crash Tested Barrier 600kg

The RB22 is one of the quickest to deploy crash tested road barrier separator systems available with a considerable 600kg weight when water filled.

At 80cm tall the RB22 barricade is perfectly suited for secure low to medium level containment and extendable to 2 metres via optional anti-climb mesh and solid metal hoarding panels. It is also compatible with a range of pedestrian and vehicle access gates to fully secure site access.

The heavy duty RB22 water filled barrier is a credible alternative to the usual concrete crash barrier systems, quicker to deploy and UK manufactured for quick lead times. The RB22 is also a fully approved water filled barrier for use on the HS2 project.

For an RB22 barrier system quote contact us on 0333 3055118 or sales@roadware.co.uk

AVAILABILITY

• Limited stock item
• Larger requirements made to order (4-10 working days)
• 4 barriers per pallet allocation
• Up to 90 barriers per dedicated full lorry load (180 metres)
• Call for lorry quote on large orders (15+ barriers)

• Onsite sell-offloading required i.e. dedicated forklift

SPECIFICATION

• Depth 500 mm
• Length 2000 mm
• Height 800 mm (2 metres with fence panel tops)
• Weight 60 Kg (600 Kg when full)
• Red and white as standard, other colours available on request
• Optional red & white reflective Chapter 8 strips

FEATURES

• One-piece moulded design
• 2 person lift / deployment
• Robust prime UV stabilised durable polyethylene
• Crash tested to BS EN1317- N1 50Mph (80KMph)
• Quick pin hinge and support plate assembly
• No heavy tooling required for deployment
• Can be water filled during assembly
• Wide design with forklift slots at each base for ease of deployment
• Securely stackable for transportation & storage
• On any impact if barrier isn’t punctured/damaged removal from site not required
• End stops and anti-climb mesh hoarding available for added security & safety
• UK Manufactured

STANDARDS

• MIRA Wind speed & Crash Test Results
• 1 x RB22 Barrier (water filled to fill line)
• Withstood wind speeds of up to 78 mph (max speed).
• No barrier failed at the given speed.
• Tested and Approved by TRL to BS EN1317- N1 50 mph (80 kmph) crash test

OVERVIEW
The RB22 by Oaklands Plastics is new to the road safety industry and is a one-piece moulded design with no added sections.
On impact the barrier will bring an errant vehicle to a controlled stop yet it is easier to transport and better looking than concrete barriers.
The RB22 barrier system is locked together in the centre with a steel pin formation.

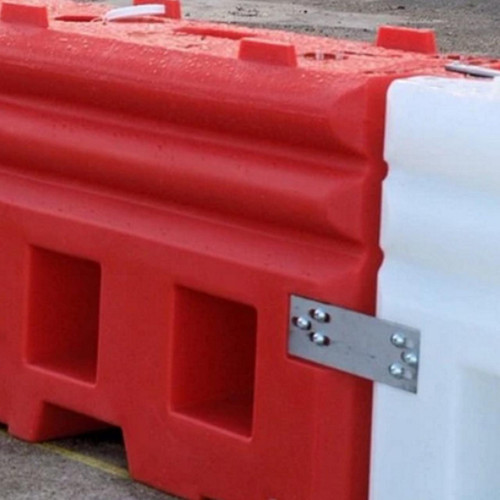

For added strength two flat steel plates are easily screw fitted making the RB22 a strong and versatile barrier to withstand impacts from errant vehicles.
This is a fully interlocking barrier system and produced in robust UV stabilised prime polyethylene for extended durable use.
For added safety and security anti-climb mesh and hoarding panels can be added.
Front and end panel stops are also available to prevent trip hazards.
